8259 Programmable Interrupt Controller

• Features
• Pinout
• Block diagram
• ICW1 (Initialisation Command Word One)
• ICW2 (Initialisation Command Word Two)
• ICW3 (Initialisation Command Word Three)
• ICW4 (Initialisation Command Word Four)
• OCW1 (Operational Command Word One)
• OCW2 (Operational Command Word Two)
• OCW3 (Operational Command Word Three)
• Interrupt sequence (single PIC)

---

Features:

• 8 levels of interrupts.
• Can be cascaded in master-slave configuration to handle 64 levels of interrupts.
• Internal priority resolver.
• Fixed priority mode and rotating priority mode.
• Individually maskable interrupts.
• Modes and masks can be changed dynamically.
• Accepts IRQ, determines priority, checks whether incoming priority > current level being serviced, issues interrupt signal.
• In 8085 mode, provides 3 byte CALL instruction. In 8086 mode, provides 8 bit vector number.
• Polled and vectored mode.
• Starting address of ISR or vector number is programmable.
• No clock required.

---

Pinout

D0-D7 Bi-directional, tristated, buffered data lines. Connected to data bus directly or through buffers RD-bar Active low read control WR-bar Active low write control A0 Address input line, used to select control register CS-bar Active low chip select CAS0-2 Bi-directional, 3 bit cascade lines. In master mode, PIC places slave ID no. on these lines. In slave mode, the PIC reads slave ID no. from master on these lines. It may be regarded as slave-select. SP-bar / EN-bar Slave program / enable. In non-buffered mode, it is SP-bar input, used to distinguish master/slave PIC. In buffered mode, it is output line used to enable buffers INT Interrupt line, connected to INTR of microprocessor INTA-bar Interrupt ack, received active low from microprocessor IR0-7 Asynchronous IRQ input lines, generated by peripherals.

---

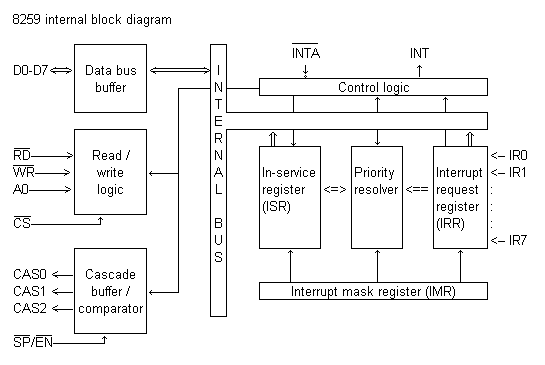

Block diagram

---

ICW1 (Initialisation Command Word One)

A0 0	D7 D6 D5 D4 D3 D2 D1 D0 A7 A6 A5 1 LTIM ADI SNGL IC4

D0: IC4: 0=no ICW4, 1=ICW4 required
D1: SNGL: 1=Single PIC, 0=Cascaded PIC
D2: ADI: Address interval. Used only in 8085, not 8086. 1=ISR's are 4 bytes apart (0200, 0204, etc) 0=ISR's are 8 byte apart (0200, 0208, etc)
D3: LTIM: level triggered interrupt mode: 1=All IR lines level triggered. 0=edge triggered
D4-D7: A5-A7: 8085 only. ISR address lower byte segment. The lower byte is

A7

A6

A5

A4

A3

A2

A1

A0

of which A7, A6, A5 are provided by D7-D5 of ICW1 (if ADI=1), or A7, A6 are provided if ADI=0. A4-A0 (or A5-A0) are set by 8259 itself:

ADI=1 (spacing 4 bytes) IRQ A7 A6 A5 A4 A3 A2 A1 A0 IR0 A7 A6 A5 0 0 0 0 0 IR1 A7 A6 A5 0 0 1 0 0 IR2 A7 A6 A5 0 1 0 0 0 IR3 A7 A6 A5 0 1 1 0 0 IR4 A7 A6 A5 1 0 0 0 0 IR5 A7 A6 A5 1 0 1 0 0 IR6 A7 A6 A5 1 1 1 0 0 IR7 A7 A6 A5 1 1 1 0 0

ADI=0 (spacing 8 bytes) IRQ A7 A6 A5 A4 A3 A2 A1 A0 IR0 A7 A6 0 0 0 0 0 0 IR1 A7 A6 0 0 1 0 0 0 IR2 A7 A6 0 1 0 0 0 0 IR3 A7 A6 0 1 1 0 0 0 IR4 A7 A6 1 0 0 0 0 0 IR5 A7 A6 1 0 1 0 0 0 IR6 A7 A6 1 1 0 0 0 0 IR7 A7 A6 1 1 1 0 0 0

---

ICW2 (Initialisation Command Word Two)

Higher byte of ISR address (8085), or 8 bit vector address (8086).

A0 1	D7 D6 D5 D4 D3 D2 D1 D0 A15 A14 A13 A12 A11 A10 A9 A8

---

ICW3 (Initialisation Command Word Three)

A0 1	D7 D6 D5 D4 D3 D2 D1 D0 Master S7 S6 S5 S4 S3 S2 S1 S0 Slave 0 0 0 0 0 ID3 ID2 ID1

• Master mode: 1 indicates slave is present on that interrupt, 0 indicates direct interrupt
• Slave mode: ID3-ID2-ID1 is the slave ID number. Slave 4 on IR4 has ICW3=04h (0000 0100)

---

ICW4 (Initialisation Command Word Four)

A0 1	D7 D6 D5 D4 D3 D2 D1 D0 0 0 0 SFNM BUF M/S AEOI Mode

• SFNM: 1=Special Fully Nested Mode, 0=FNM
• M/S: 1=Master, 0=Slave
• AEOI: 1=Auto End of Interrupt, 0=Normal
• Mode: 0=8085, 1=8086

---

OCW1 (Operational Command Word One)

A0 1	D7 D6 D5 D4 D3 D2 D1 D0 M7 M6 M5 M4 M3 M2 M1 M0

IRn is masked by setting Mn to 1; mask cleared by setting Mn to 0 (n=0..7)

---

OCW2 (Operational Command Word Two)

A0 1	D7 D6 D5 D4 D3 D2 D1 D0 R SL EOI 0 0 L3 L2 L1

	R	SL	EOI	Action
EOI	0	0	1	Non specific EOI (L3L2L1=000)
	0	1	1	Specific EOI command (Interrupt to clear given by L3L2L1)
Auto rotation of priorities (L3L2L1=000)	1	0	1	Rotate priorities on non-specific EOI
	1	0	0	Rotate priorities in auto EOI mode set
	0	0	0	Rotate priorities in auto EOI mode clear
Specific rotation of priorities (Lowest priority ISR=L3L2L1)	1	1	1	Rotate priority on specific EOI command (resets current ISR bit)
	1	1	0	Set priority (does not reset current ISR bit)
	0	1	0	No operation

---

OCW3 (Operational Command Word Three)

A0 1	D7 D6 D5 D4 D3 D2 D1 D0 D7 ESMM SMM 0 1 MODE RIR RIS

ESMM	SMM	Effect
0	X	No effect
1	0	Reset special mask
1	1	Set special mask

---

Interrupt sequence (single PIC)

1. One or more of the IR lines goes high.
2. Corresponding IRR bit is set.
3. 8259 evaluates the request and sends INT to CPU.
4. CPU sends INTA-bar.
5. Highest priority ISR is set. IRR is reset.
6. 8259 releases CALL instruction on data bus.
7. CALL causes CPU to initiate two more INTA-bar's.
8. 8259 releases the subroutine address, first lowbyte then highbyte.
9. ISR bit is reset depending on mode.

---
